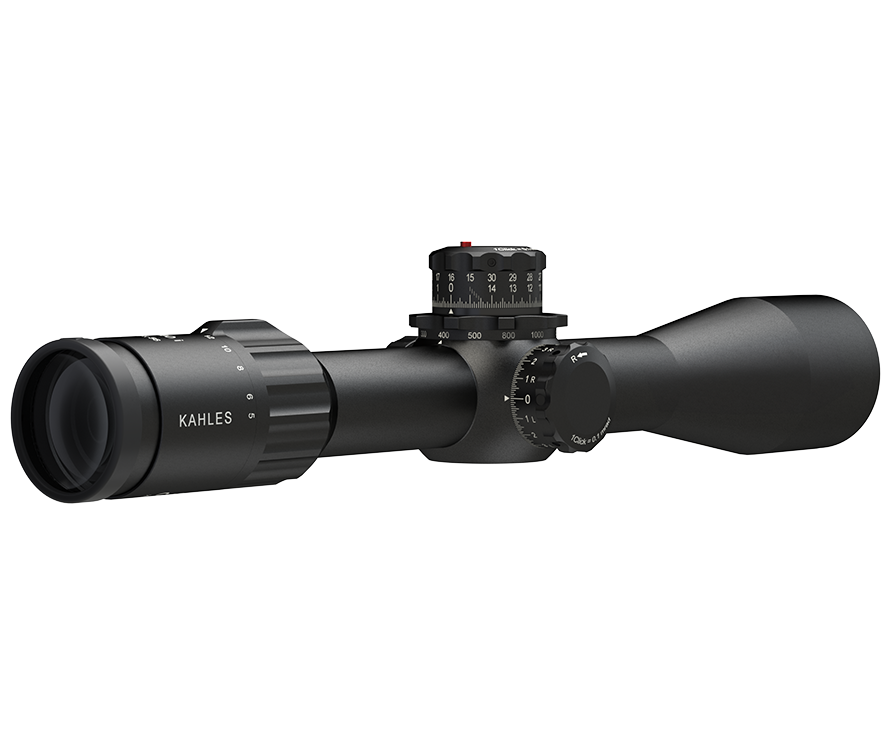

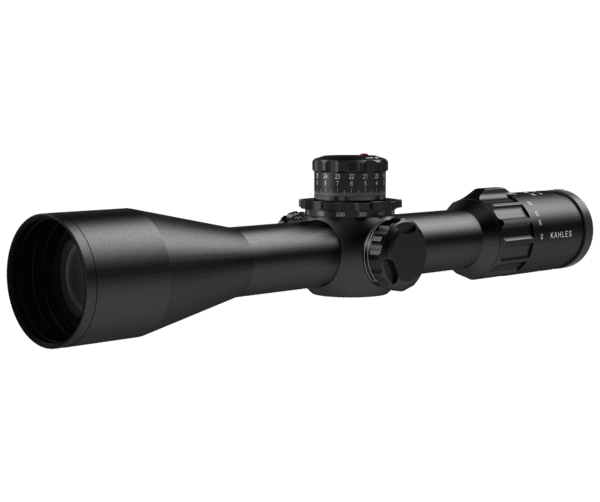

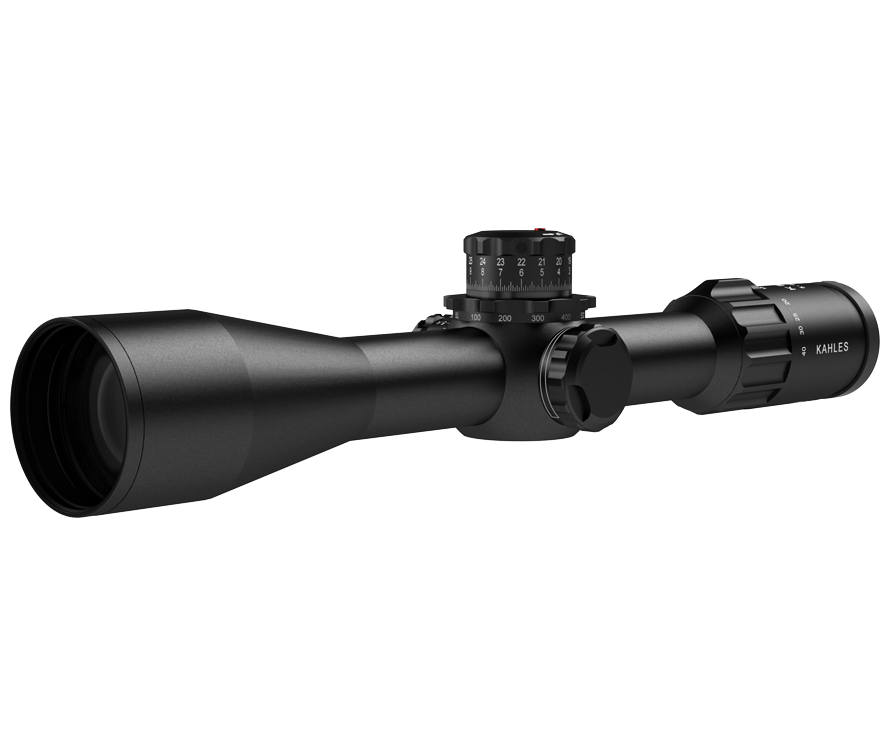

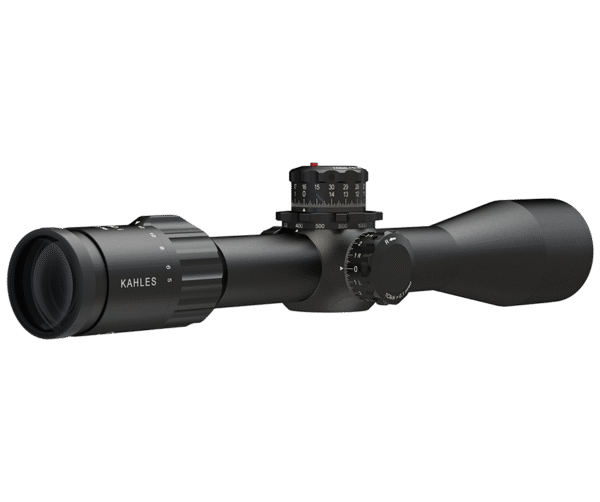

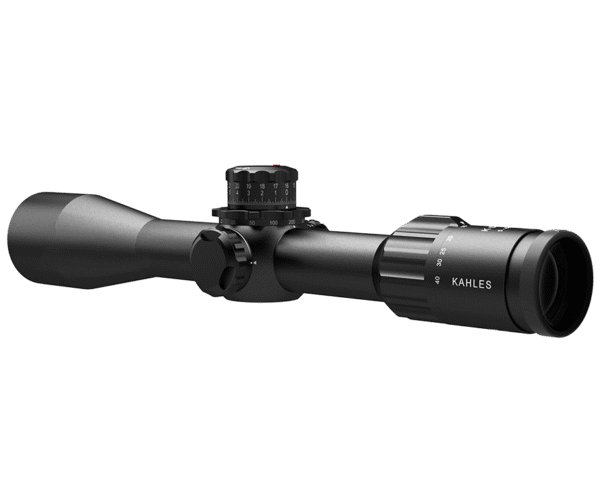

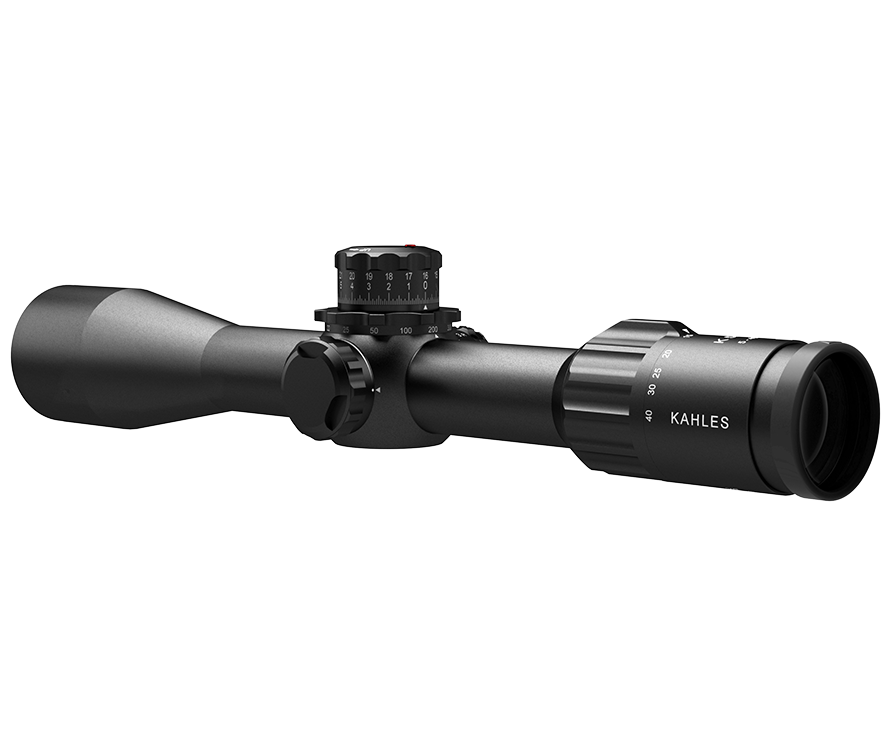

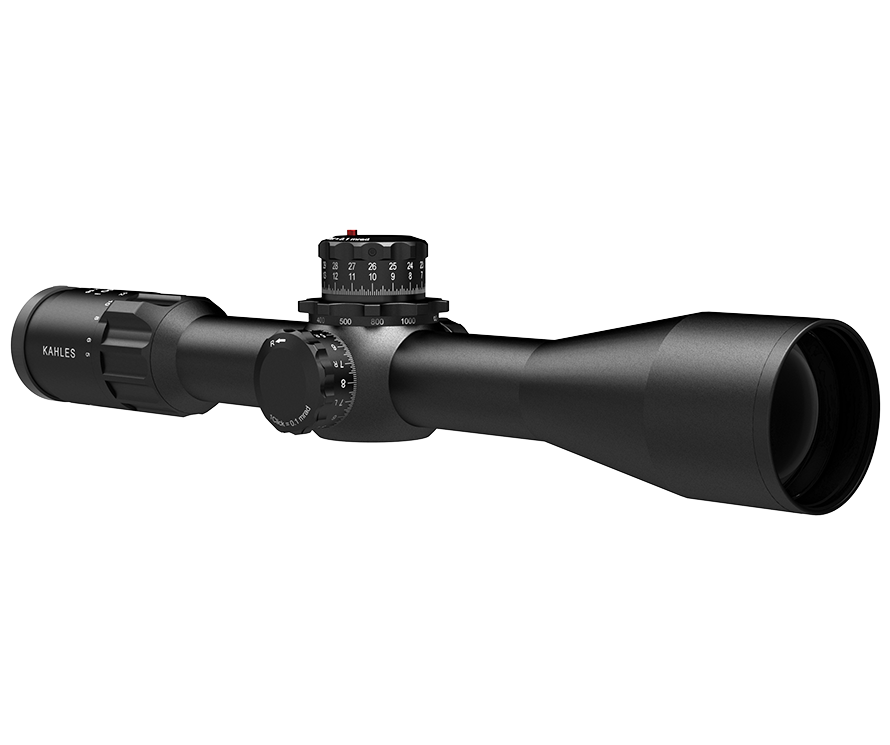

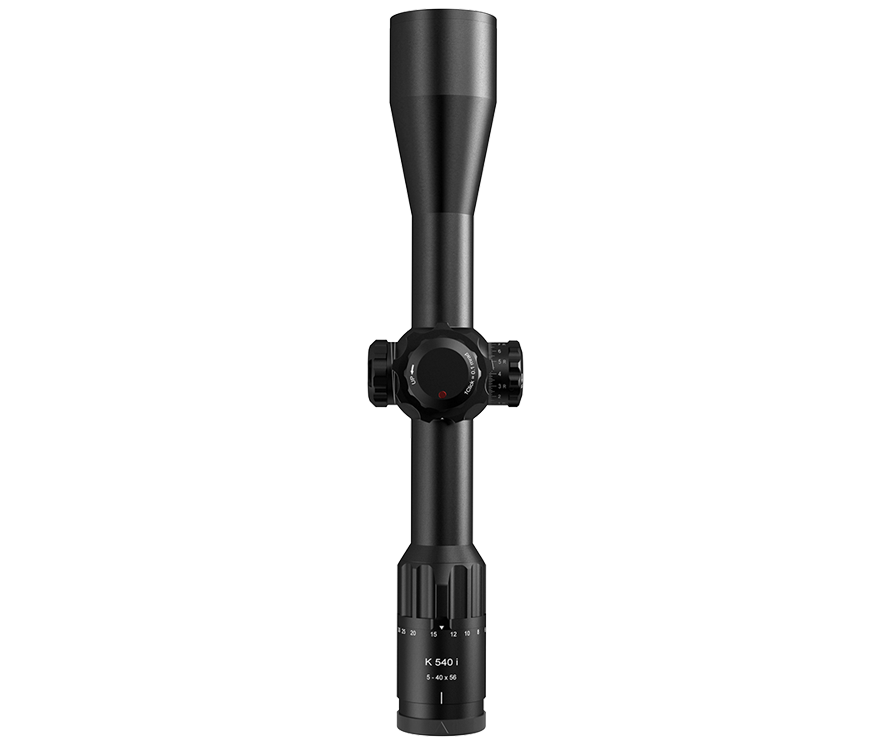

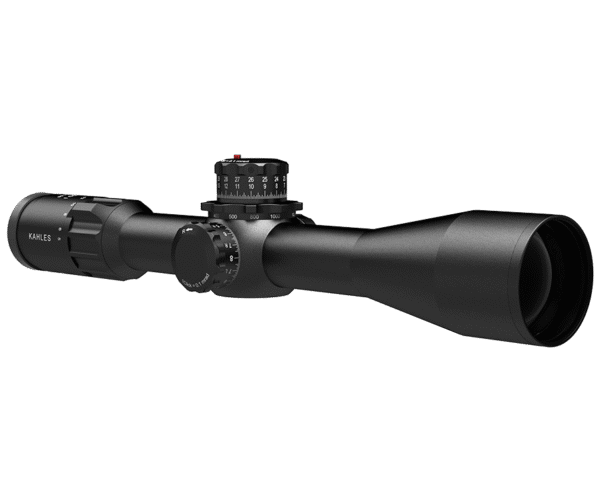

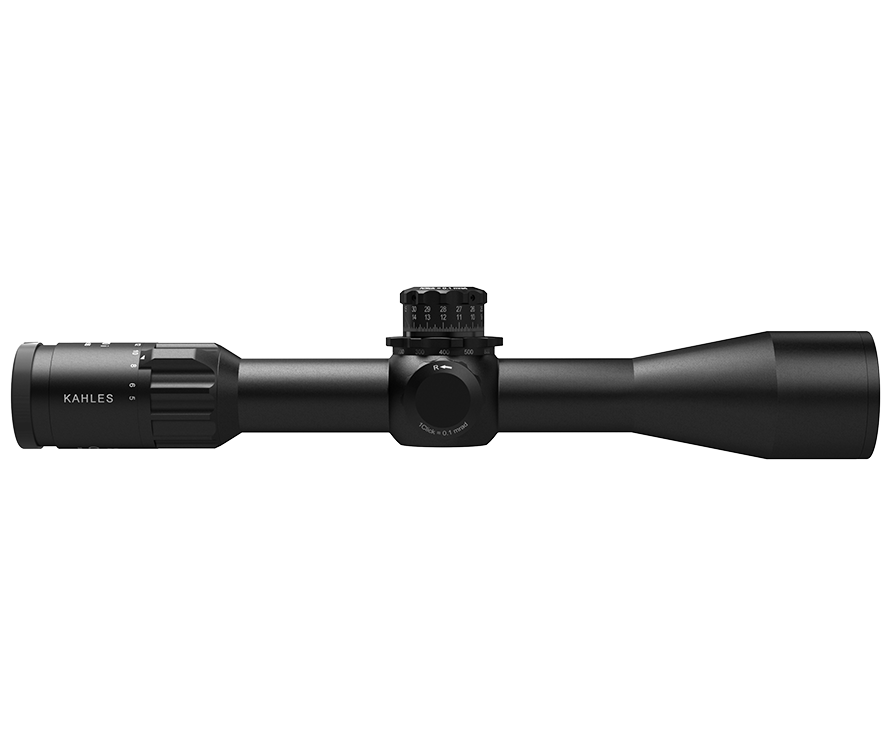

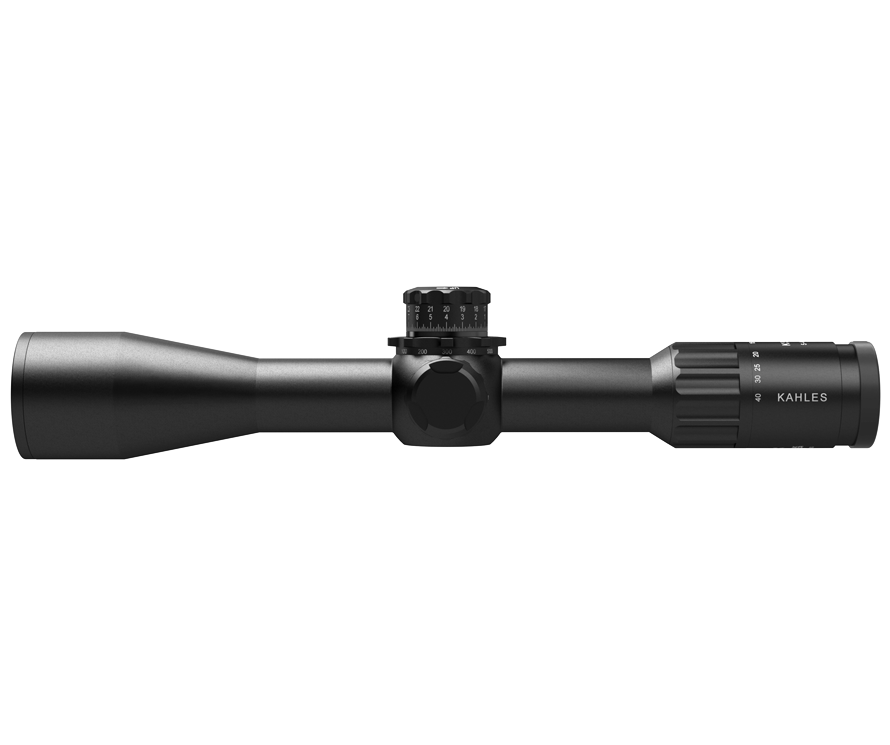

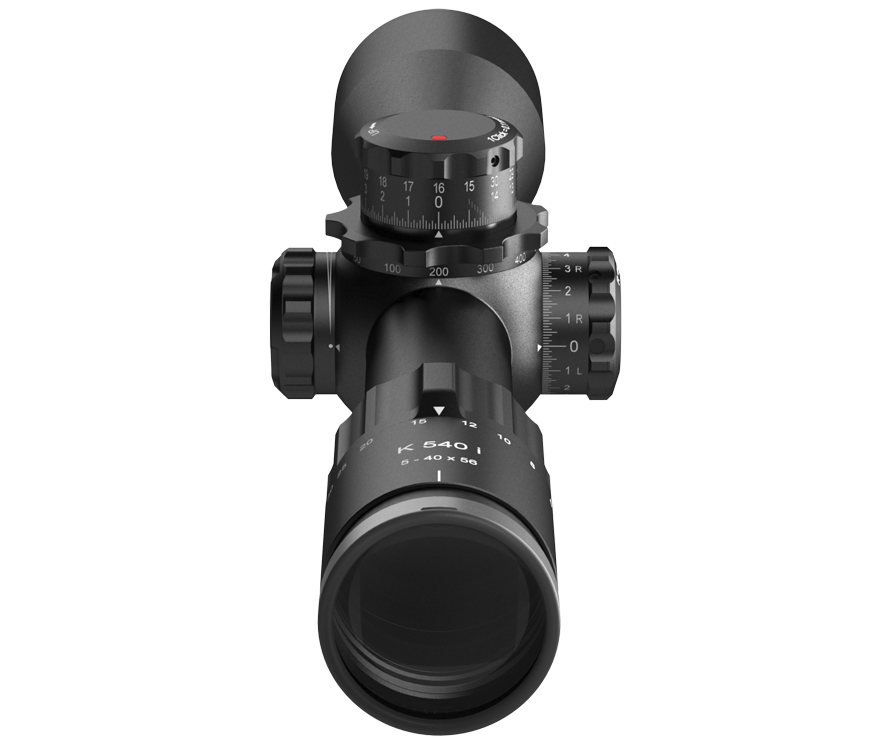

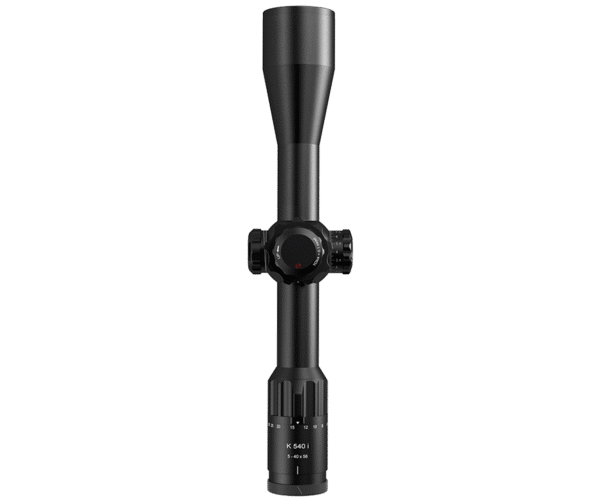

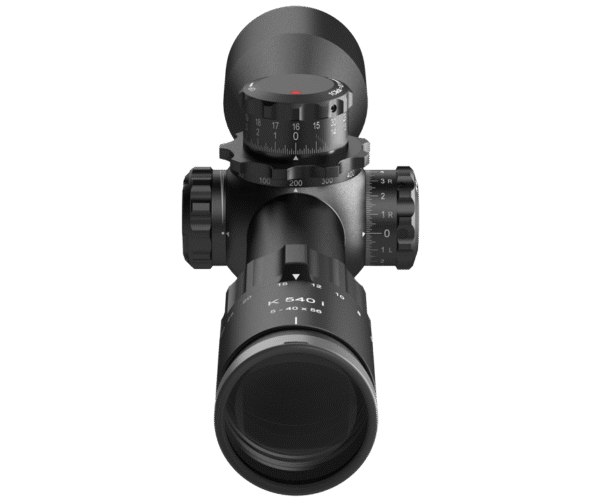

KAHLES K540i
€ 4.399,00
Beschrijving
The groundbreaking K540i sets new performance standards with a pioneering new-generation optical design. It offers a 40 % wider field of view*, an exceptionally comfortable eyebox and 8 x zoom with perfect optical performance across the entire adjustment range.
Configurations:
Reticles: AMR | MSR2/Ki | SKMR+ | SKMR4+
Turret direction: CW (Only possible for MSR2/Ki)| CCW (All models)
Windage adjustment: LEFT | RIGHT
Let us know in the order comment or by email (mention your ordernumber) your desired configuration.
Highlights
- Revolutionary optical design with a 40% wider field of view*
- Perfect optical performance with 8x zoom over the entire adjustment range
- Exceptionally comfortable eyebox even at 40X magnification

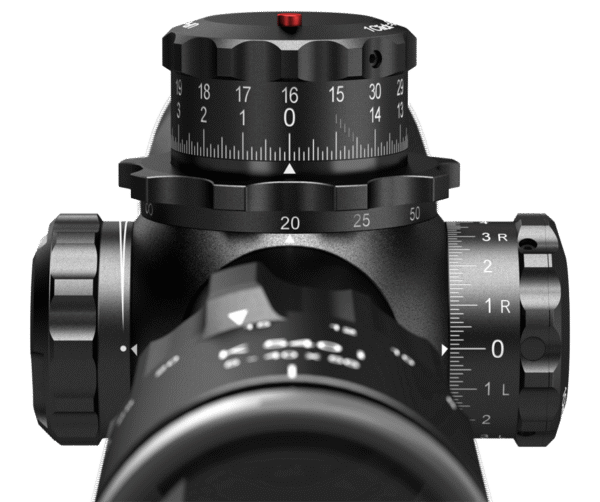

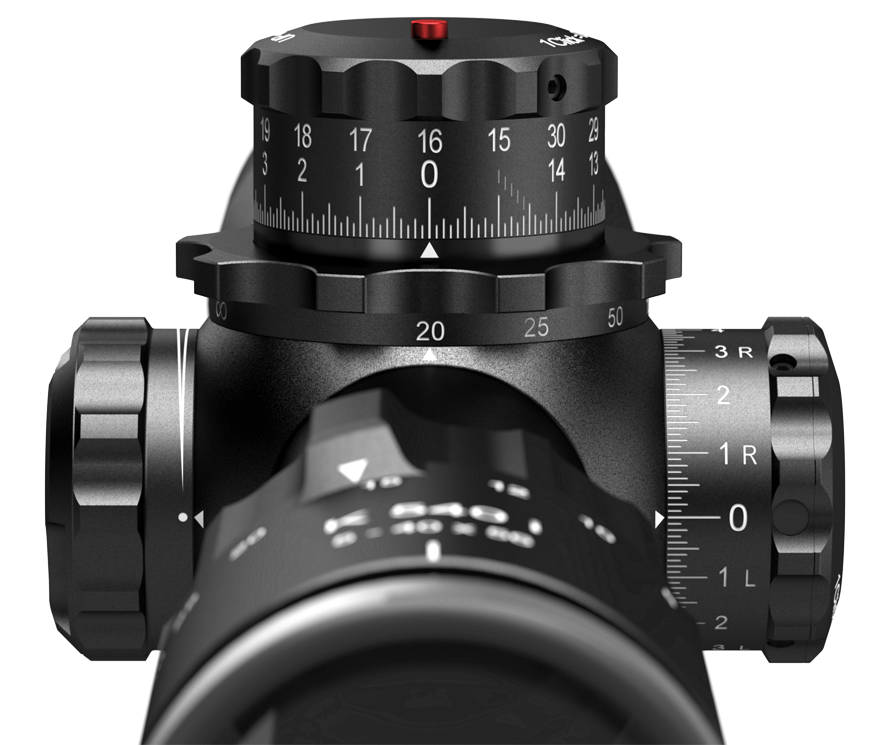

- Windage adjustment available left or right with TWIST GUARD rotation protection
- Patented parallax adjustment integrated in the elevation turret (20 m to ∞)
- 160 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks
- Precise illuminated reticle in 1st focal plane

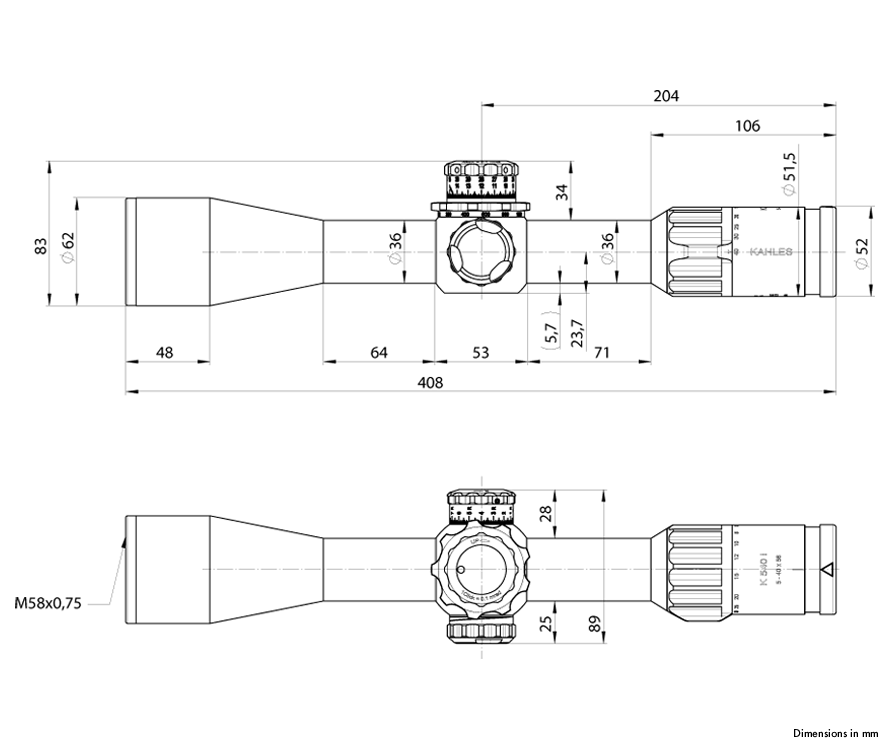

Technical data
| Magnification: | 5-40x56i |
| Objective lens diameter: | 56 mm |
| Exit pupil: | 1,4 – 7,7 mm |
| Eye relief: | 92 mm |
| Field of view: | 10.2 – 1.3 m/100 m |
| Diopter compensation: | +2 / -3 dpt |
| Twilight factor (DIN 58388): | 13.9-47.3 |
| Impact correction per click: | .1 MRAD |
| Adjustment range (E/W): | 2,9 / 1,2 m/100m |
| Parallax adjustment: | 20 m – ∞ |
| Tube diameter: | 36 mm |
| Length: | 408 mm |
| Weight: | 1110 g |
| Focal plane: | 1. |
| Illuminated: | Yes |
| Warranty: | 10 (2 electronics) |
